Chemical
Process Pumps
Type
HCP : Centrifugal Pumps
Designed As Per ANSI D73.1 1974
Superior Hydraulics Extensive Coverage Max.
Interchangeability
Applications
:
Virtually all chemicals, acids, alkalies, corrosive
slurries, solvents, hydrocarbons etc.
Range :
Capacity : Upto 800 m3/hr.
Head : upto 230 mtrs.
Temperature : upto 2600C
Working Pressure : Upto 26kg/cm2
Speed : upto 3000 rpm
Shaft Sealing : Gland / Mech. seal
Material of Construction :
C.I., C.S., S.S. 304, SS 316, SS316L, Alloy 20,
Hastalloy Model, Ni-Hard etc.
FEATURES
:
| * |
Designed
as per ANSI D73.1 1974 |
| * |
Horizontal
Centrifugal Back Pull out type |
| * |
Single
stage, End Suction, Top centerline discharge. |
| * |
Covers
a large range of 32 sizes with interchangeable
mounting dimensions, easy to facilitate
installation, maintenance and maximum dimensional
interchangeability to minimize spares inventory. |
| * |
Designed
as sturdy, reliable and trouble free equipment
for handling even hard to handle corrosive
liquids and slurries. |
| * |
Bearing
housing cooling jacket, a integral part of
design. |
| * |
Relable
various mechanical seal options, mountings and
flushing plants for clear liquids or even
slurries, to give zero leakage and prolong life
of seals. |
|

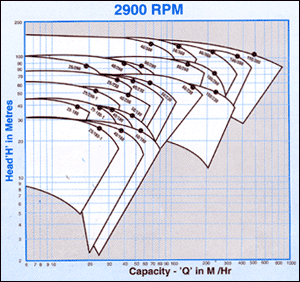

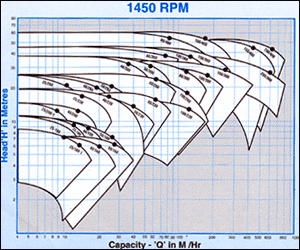

Range
Chart
Next |
