Our Product Range
Plastic Moulded Pumps
Type : HPP
Designed As Per ISO 2858 (DIN-24256) Standard
Superior Hydraulics Extensive Coverage Max.
Interchangeability
Applications
:
Hard to handle Corrosive Acids & Alkalies Effluent
Treatment Plant
Scrubbing Corrosive Gases
Electro Plating / Descaling / Pickling Plants
Range :
Capacity : Upto 120 m/hr.
Head : upto 130 mtrs.
Temperature : upto 700C for P.P.
upto 1000C for U.H.M.W.P.E.
upto 2000C for Teflon
Speed : upto 3000 rpm
Shaft Sealing : Gland / Mech. seal
Material of Construction :
P.P.,
U.H.M.W.P.E., P.V.D.F., P.T.F.E. ( TEFLON ), TEFLON-LINED,
ETC.
FEATURES
:
| * |
Designed
as per ISO 2858 ( DIN-24256 ) Standards. |
| * |
Horizontal
Centrifugal Back Pull out type |
| * |
Single
stage, Self venting, End Suction, Top centerline
discharge. |
| * |
Covers
a large range of 32 sizes with interchangeable
mounting dimensions, easy to facilitate
installation, maintenance and maximum dimensional interchangeability
to minimize spares inventory. |
| * |
Designed
as sturdy, reliable and trouble free equipment for
handling even hard to handle corrosive liquids and
slurries. |
| * |
Teflon
Below / Reverse Balance Mech. Seals can be
provided with various face combination viz.
Ceramic, Silicon Carbide, Carbon, Glass Filled
Teflon, Silicon filled Teflon etc. depending upon
applications for zero leakage and prolong seal
life. |

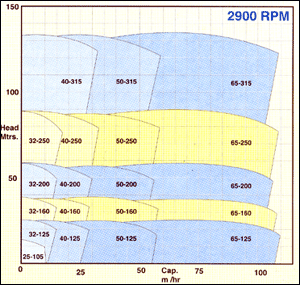

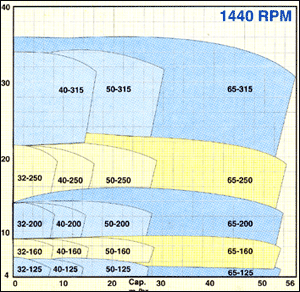

Range
Chart
|
|
|
